Chapter 13. Snake

The Snake.elm program is a game, in which the player uses the keyboard arrows to choose the direction that the snake goes to. The snake should eat food represented as green rectangles. When the snake eats (covers it with its head), it also grows. The game ends, when the snake collides with itself or a wall. Before continuing, try the game here (Snake.html), to have an idea of how it works.

The code is divided into several modules:

We start our analysis with the SnakeModel module defined in the SnakeModel.elm file. The module starts with the usual module declaration and imports.

File SnakeModel.elm (fragment):
module SnakeModel where


import Maybe exposing (withDefault)
import List exposing ((::), drop, head, isEmpty, map, reverse)
import Set

Then it defines the following type aliases:

File SnakeModel.elm (fragment):
type alias Position =
    { x: Int
    , y: Int
    }


type alias Delta =
    { dx: Int
    , dy: Int
    }


type alias Snake =
    { front: List Position
    , back: List Position
    }


type alias SnakeState =
    { snake: Snake
    , delta: Delta
    , food: Maybe Position
    , ticks: Int
    , gameOver: Bool
    }

SnakeState represents the state of the game. The snake member, of type Snake, contains the snake positions (the Position type) on the board, stored in two lists (it will be explained below why it is convenient to store it that way). The delta member, of type Delta, stores the current direction of the snake. At any given point in time, one of its members: dx or dy is set to 1 or -1, and the other is set to 0. The food represents the position of the food wrapped in Maybe. The ticks member is a counter of Tick events (more on it below). The gameOver member is a boolean value indicating whether the game has been finished or not.

The initialState function creates the initial game state:

File SnakeModel.elm (fragment):
initialSnake =
    { front = [{x = 0, y = 0}, {x = 0, y = -1}, {x = 0, y = -2}, {x = 0, y = -3}]
    , back = []
    }


initialDelta = { dx = 0, dy = 1 }


initialFood = Nothing


initialState =
    { snake = initialSnake
    , delta = initialDelta
    , food = initialFood
    , ticks = 0
    , gameOver = False
    }

The game state is changed in reaction to events represented by the following data type:

File SnakeModel.elm (fragment):
type Event = Tick Position | Direction Delta | NewGame | Ignore

The Tick event is periodically generated based on a time signal and contains a potential, new, randomly-generated position of the food. The Direction event represents the new snake direction generated based on a keyboard signal. The NewGame event is used for starting the game from the beginning. Finally, there is the Ignore event, that will be, well, ignored.

The game logic depends on certain constants:

File SnakeModel.elm (fragment):
boardSize = 15


boxSize = boardSize + boardSize + 1


velocity = 5

The boxSize is the size of the game board, calculated based on the boardSize value. The size is expressed in logical units. One unit is equivalent to a square drawn on the screen. The size of the square is specified elsewhere. The velocity indicates how many Tick signals are needed for one snake move.

The nextPosition function calculates the next position on the board that the snake’s head will move into.

File SnakeModel.elm (fragment):
nextPosition : Snake -> Delta -> Position
nextPosition snake {dx,dy} =
    let headPosition = head snake.front |> withDefault {x=0,y=0}
    in  { x = headPosition.x + dx, y = headPosition.y + dy }

The moveSnakeForward function calculates the snake positions after the move.

File SnakeModel.elm (fragment):
moveSnakeForward : Snake -> Delta -> Maybe Position -> Snake
moveSnakeForward snake delta food =
    let next = nextPosition snake delta
        tailFunction =
            case food of
                Nothing -> drop 1
                Just f -> if next == f then identity else drop 1
    in
        if isEmpty snake.back
        then { front = [next]
             , back = (tailFunction << reverse) snake.front }
        else { front = next :: snake.front
             , back = tailFunction snake.back }

The snake positions are stored in two lists. That way of representation is chosen, because to move the snake, we need to operate on its both ends: we need to add a position to the front, and we need to remove one from its back (unless the snake has just eaten food, in which case we leave the tail as it was). Thus Snake.front represents the snake positions from its head backward, while Snake.back represents its positions from the back forward (thus the positions are stored in the opposite direction). Since the new positions are added to the front and removed from the back, from time to time the back member may be exausted and become empty. In such a situation, the front list is reversed and assigned to back (possibly with one element removed). The tailFunction function returns the tail of the list given to it as argument, or returns the list unchanged, based on whether the next position to be occuppied by the snake is equal to the food position.

The isInSnake function verifies whether the snake contains a given position. The function builds sets from both lists containing the snake positions (using the Set.fromList function) and uses the Set.member function to verify the membership.

File SnakeModel.elm (fragment):

isInSnake : Snake -> Position -> Bool
isInSnake snake position =
    let frontSet = Set.fromList <| map toString snake.front
        backSet = Set.fromList <| map toString snake.back
    in
        Set.member (toString position) frontSet || Set.member (toString position) backSet

The collision function detects the collision state, that is a state in which the next position of the snake belongs to the snake or is outside the board.

File SnakeModel.elm (fragment):

collision : SnakeState -> Bool
collision state =
    let next = nextPosition state.snake state.delta
    in
        if abs next.x > boardSize || abs next.y > boardSize || isInSnake state.snake next
        then True
        else False

The SnakeView module, defined in the SnakeView.elm file, contains functions responsible for drawing the game. It begins with the module declaration and a block of imports.

File SnakeView.elm (fragment):
module SnakeView where


import Color exposing (Color, black, blue, green, red, white)
import Graphics.Collage exposing (Form, collage, filled, move, rect)
import Graphics.Element exposing (Element, centered, container, empty, midBottom, middle, layers)
import List exposing (map)
import Maybe
import SnakeModel exposing (..)
import Text

The snake and the food are drawn using filled squares. The actual size of the squares and the size of the board boundaries are calculated by the following functions:

File SnakeView.elm (fragment):
unit = 15


innerSize = unit * boxSize


outerSize = unit * (boxSize+1)

The box function draws the board boundaries by drawing two rectangles: a bigger black one, and a smaller white one on top.

File SnakeView.elm (fragment):
box =
    collage outerSize outerSize [
        filled black <| rect outerSize outerSize,
        filled white <| rect innerSize innerSize ]

The drawPosition function draws a single square on a given position.

File SnakeView.elm (fragment):
drawPosition : Color -> Position -> Form
drawPosition color position =
    filled color (rect unit unit) |>
    move (toFloat (unit*position.x), toFloat (unit*position.y))

The drawPositions function draws squares representing positions from a list.

File SnakeView.elm (fragment):
drawPositions : Color -> List Position -> Element
drawPositions color positions =
    collage outerSize outerSize (map (drawPosition color) positions)

The drawFood function draws a green square representing food.

File SnakeView.elm (fragment):
drawFood : Position -> Element
drawFood position = drawPositions green [position]

The gameOver function draws the text informing the user that the game is over.

File SnakeView.elm (fragment):
gameOver : Element
gameOver =
    Text.fromString "Game Over"
        |> Text.color red
        |> Text.bold
        |> Text.height 60
        |> centered
        |> container outerSize outerSize middle

The instructions function shows the game instructions below the board.

File SnakeView.elm (fragment):
instructions : Element
instructions =
    Text.fromString "Press the arrows to change the snake move direction.\nPress N to start a new game."
        |> centered
        |> container outerSize (outerSize+3*unit) midBottom

The view function combines the above functions into one that draws the whole game based on the state given in the argument.

File SnakeView.elm (fragment):
view state =
    layers [ box
           , instructions
           , drawPositions blue state.snake.front
           , drawPositions blue state.snake.back
           , Maybe.withDefault empty <| Maybe.map drawFood state.food
           , if state.gameOver then gameOver else empty
           ]

The empty function returns an element that is, well, empty. It is not showed on the screen. That element is used if there is no food to be drawn.

The main function is for testing purposes. The module can be compiled and the resulting page opened, showing the game initial state.

File SnakeView.elm (fragment):
main = view initialState

You can verify what it shows here: SnakeView.html.

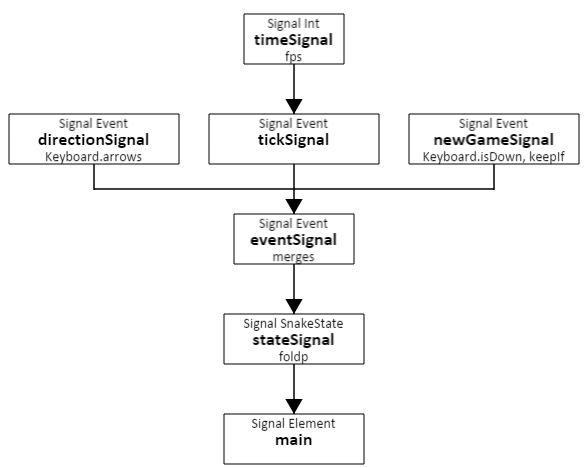

The SnakeSignals module creates several of the game signals. The following figure presents how the individual signals are combined together to produce the main game signal.

The SnakeSignals module defined the functions showed on the figure, except for the stateSignal and main functions, which are defined in different modules.

File SnakeSignals.elm (fragment):
module SnakeSignals where


import Char
import Keyboard
import Random
import Signal exposing ((<~), Signal, filter, mergeMany)
import SnakeModel exposing (..)
import SnakeView exposing (..)
import Time exposing (Time, fps)

The timeSignal function uses the fps function to produce a signal of Time values ticking with the approximate rate of 50 events per second.

File SnakeSignals.elm (fragment):
timeSignal : Signal Time
timeSignal = fps 50

The makeTick function creates a Tick event given a Time value. Each such event carries a Position value representing the potential new food position.

File SnakeSignals.elm (fragment):

makeTick : Time -> Event
makeTick time =
    let seed1 = Random.initialSeed (round time)
        (x,seed2) = Random.generate (Random.int -boardSize boardSize) seed1
        (y,_) = Random.generate (Random.int -boardSize boardSize) seed2
    in
        Tick { x = x, y = y }

The tickSignal function maps makeTick over the time signal, producing a signal of Tick events.

File SnakeSignals.elm (fragment):

tickSignal : Signal Event
tickSignal = makeTick <~ timeSignal

The directionSignal function uses the Keyboard.arrows function and produces a signal of the directions the snake should move to.

File SnakeSignals.elm (fragment):

directionSignal : Signal Event
directionSignal =
  let arrowsToDelta {x,y} =
          if  | x == 0 && y == 0 -> Ignore
              | x /= 0 -> Direction { dx = x, dy = 0 }
              | otherwise  -> Direction { dx = 0, dy = y }
  in
      arrowsToDelta <~ Keyboard.arrows

The newGameSignal function produces a signal of NewGame events. The events are generated when the player presses the “N” key on the keyboard. The Keyboard.isDown function is used for detecting the key events, while the filter function is used to filter-out the events related to releasing the button. The always function always returns its argument (NewGame) regardles of its input.

File SnakeSignals.elm (fragment):
newGameSignal : Signal Event
newGameSignal =
    always NewGame <~ (filter identity False <| Keyboard.isDown (Char.toCode 'N'))

The eventSignal function merges the signals produced by tickSignal, directionSignal and newGameSignal. Notice that all the input signals have the same signature.

File SnakeSignals.elm (fragment):

eventSignal : Signal Event
eventSignal = mergeMany [tickSignal, directionSignal, newGameSignal]

The stateSignal function is defined in the StateState module. The module obviously starts with the module declaration and imports.

File SnakeState.elm (fragment):
module SnakeState where


import List exposing (head)
import Signal exposing (Signal, foldp)
import SnakeModel exposing (..)
import SnakeSignals exposing (..)

The stateSignal function uses the foldp function and produces a signal of SnakeState.

File SnakeState.elm (fragment):
stateSignal : Signal SnakeState
stateSignal = foldp step initialState eventSignal

The foldp function takes three arguments. The first one is the step function — it is a function that takes two arguments (the current event and the current state) and produces the new state. The second argument is the initial state, returned by the initialState function. The third one is the signal of input events (returned by eventSignal).

The step function is producing the next game state based on the event received and the current state.

File SnakeState.elm (fragment):
step : Event -> SnakeState -> SnakeState
step event state =
    case (event,state.gameOver) of
        (NewGame,_) -> initialState
        (_,True) -> state
        (Direction newDelta,_) ->
            { state | delta <- if abs newDelta.dx /= abs state.delta.dx
                               then newDelta
                               else state.delta }
        (Tick newFood, _) ->
            let state1 = if state.ticks % velocity == 0
                         then { state | gameOver <- collision state }
                         else state
            in if state1.gameOver
               then state1
               else let state2 = { state1
                                  | snake <-
                                      if state1.ticks % velocity == 0
                                      then moveSnakeForward state1.snake state1.delta state1.food
                                      else state1.snake
                                  }
                        state3 = { state2
                                 | food <-
                                       case state2.food of
                                           Just f ->
                                               if state2.ticks % velocity == 0 &&
                                                  head state2.snake.front == Just f
                                               then Nothing
                                               else state2.food
                                           Nothing ->
                                               if isInSnake state2.snake newFood
                                               then Nothing
                                               else Just newFood
                                 }
                     in { state3 | ticks <- state3.ticks + 1 }
        (Ignore,_) -> state

The function verifies certain conditions and reacts to the first one that is true. It first verifies whether the event received is NewGame, in which case the function returns the initial state, regardless of what is the current state.

If the gameOver member of the current state is true, then the state is returned unchanged.

When a Direction event is received, the delta member is updated, but only if the new direction does not cause the snake to turn back (what would cause an immediate collision).

When the Tick event is received, several changes to the state are performed. The changes are performed one by one, producing intermediate states (state1, state2, state3). First, the collision function verifies whether a collision can be detected, in which case the game is over. The result is stored in the gameOver member of state1. If the game is over, state1 is returned and no further state updates are needed. Otherwise, the snake moves forward but only if the ticks modulo the velocity is equal to zero.

The next step is to update the food member. If there is food on the board, the snake has just moved, and its head’s position is equal to the position of the food, it means the snake has just eaten the food, in which case we set the food member to Nothing. If there is no food on the board (which happens after it has been eaten or at the beginning of the game), we verify whether the newFood can safely be put on the board, that is whether its position is not equal to the position of any segment of the snake. If it is safe, we update food to have the new food postion (wrapped in Just).

Finally the ticks member is incremented and the new state returned.

The Ignore event is ignored, that is it does not cause any state change.

The Snake module implements the main function.

File Snake.elm:
module Snake where


import Graphics.Element exposing (Element)
import Signal exposing ((<~), Signal)
import SnakeState exposing (..)
import SnakeView exposing (..)


main : Signal Element
main = view <~ stateSignal

The main function returns a Signal Element signal which is interpreted by Elm’s runtime, rendering the application.

In order to transform the game state, we have used a monolitic step function, that reacts to each possible combination of input event and current state. The solution works, but it has the disadvantage that the function which transforms the state may become big and difficult to maintain for larger programs. The next chapter presents an alternative solution for implementing the same game.
